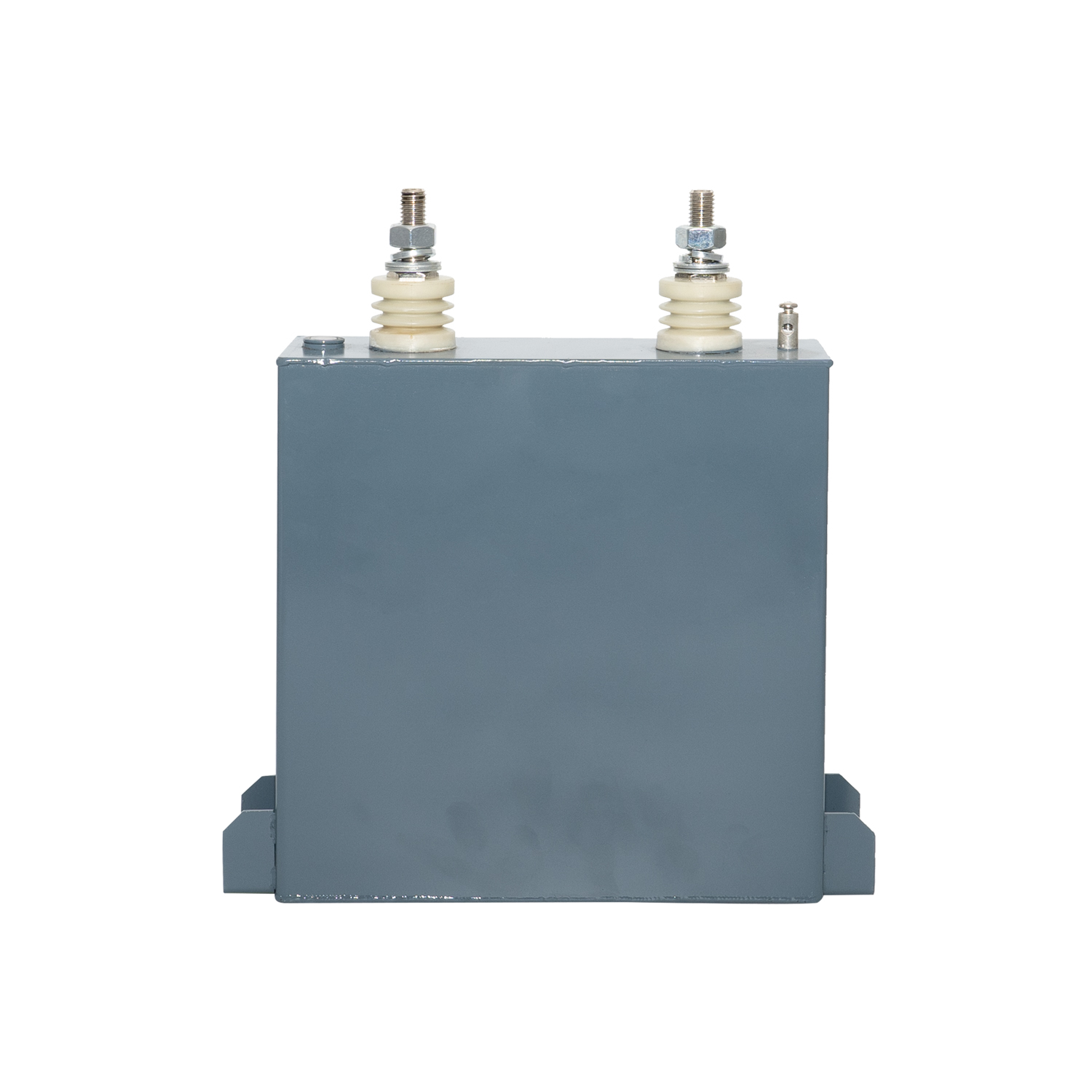

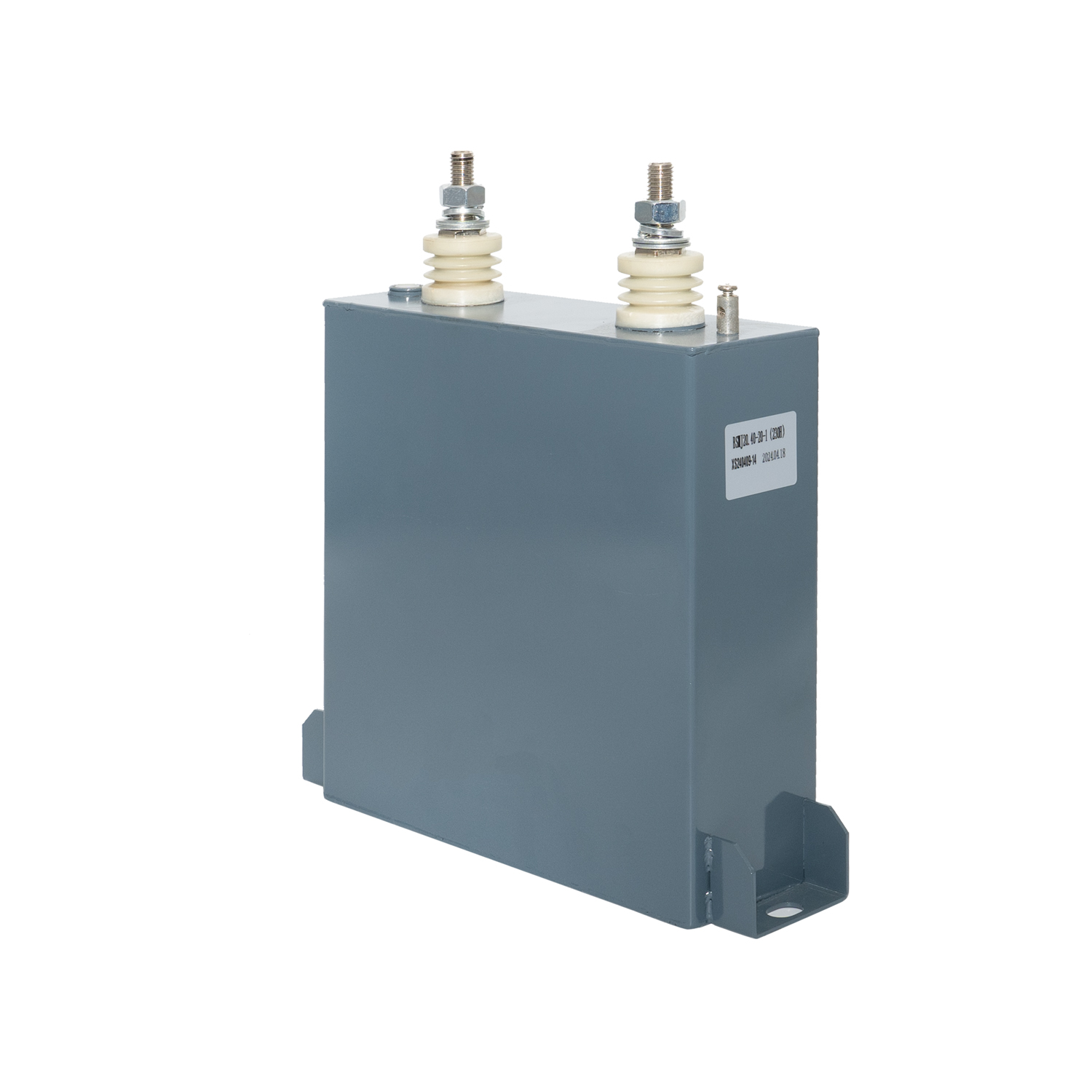

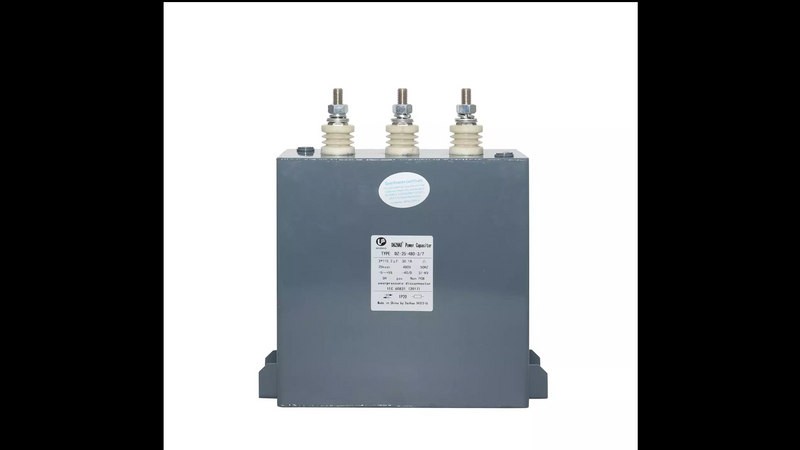

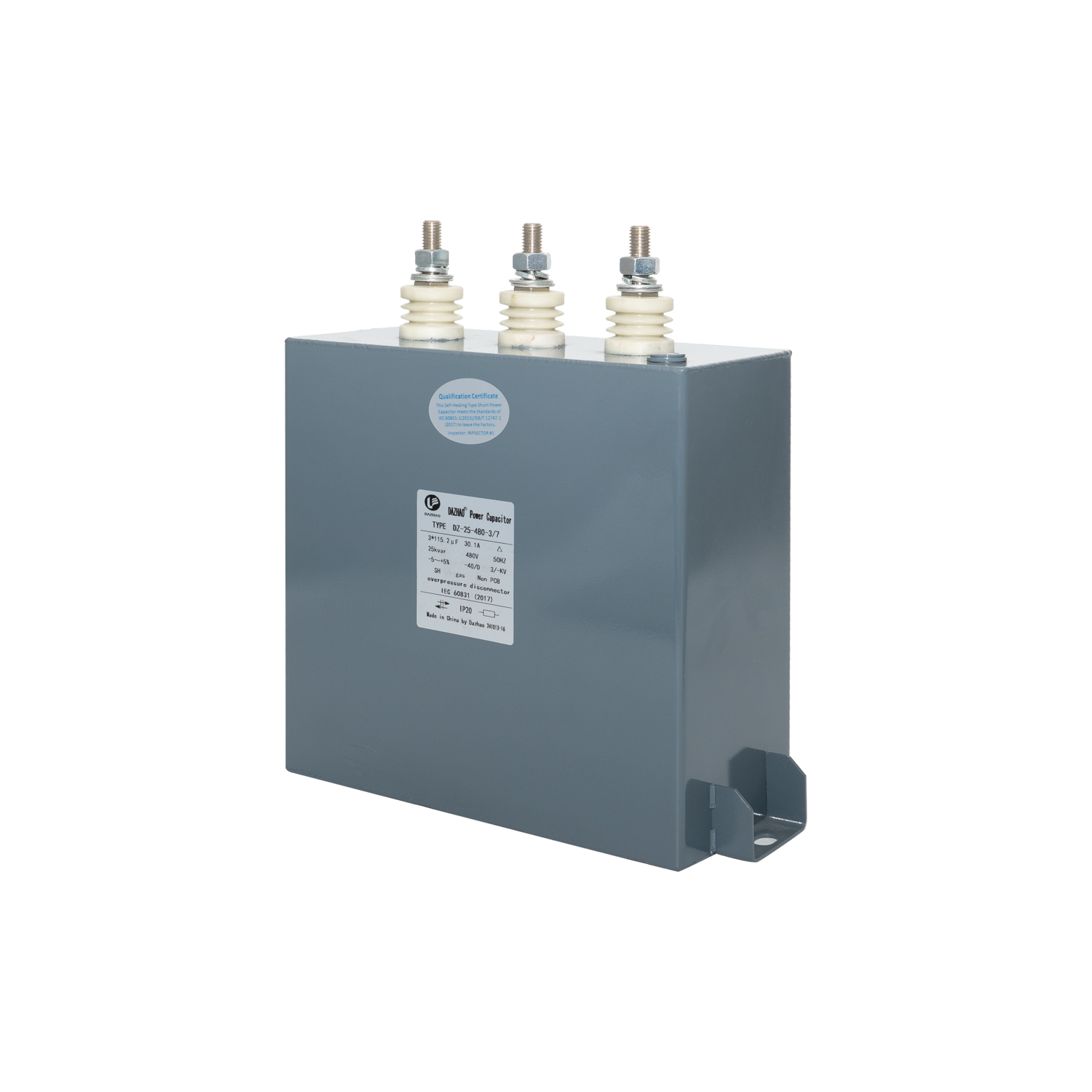

Explosion-proof Dry Filter Capacitor

Filter capacitors are specifically engineered for contemporary power grids with prevalent harmonic pollution. Characterized by high performance and exceptional reliability, they are primarily deployed in systems with significant harmonic distortion.

Availability:

Quantity:



Inquire Add to Basket

Power Capacitor Power factor correction Power Quality Power Quality Improvement film capacitor MKP capacitor Capacitor Buy Capacitor Symbol Capacitor formula AC Capacitor

Product Description

Technical parameter

Rated voltage	0.10～0.85kV
Rated voltage	50/60Hz
Capacitance deviation	0%～+5%
Temperature category	-40/C
Capacitor spacing	≥50mm
Loss Angle tangent value	tanδ≤0.0010(20℃50Hz)
Inter-electrode withstand voltage	T-T: ≥2.15Un10s
Voltage between poles	T-C: T-C: 2Un+2kV or 3kV (higher value), 10s
Discharge resistor	≤ 75V 3min
Altitude	≤5000m
Material of the box body	Steel shell
Installation conditions	Indoor;The installation and operation site should be free of harmful gases, conductive or explosive dust, and severe vibrations.

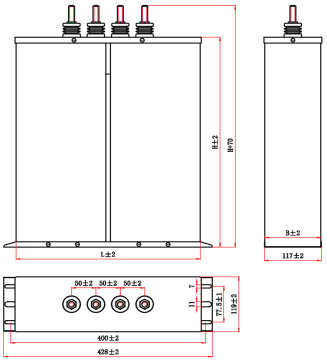

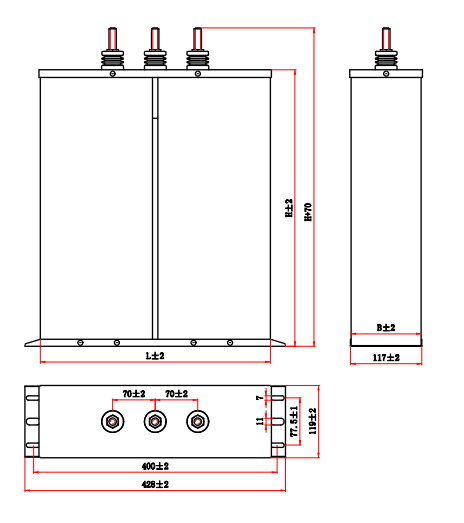

Product model	Terminal selection	Rated Current(A)	Rated Capacity (uF)	L×B×H	Installation dimensions
0.25-60-3YN	M12	80	3056	378×115×455	400×77.5	High-Capacity Per-Phase Compensation

0.28-60-3YN	M12	71.4	2436	378×115×455	400×77.5

0.3-60-3YN	M12	66.7	2122	378×115×330	400×77.5

0.45-60-3	M12	77	943	378×115×330	400×77.5
0.45-70-3	M12	89.8	1100	378×115×330	400×77.5
0.45-80-3	M12	102.6	1258	378×115×455	400×77.5
0.45-90-3	M12	115.5	1415	378×115×455	400×77.5

0.48-60-3	M12	75.2	829	378×115×330	400×77.5
0.48-70-3	M12	84.2	967	378×115×455	400×77.5	High-Capacity Centralized Compensation
0.48-80-3	M12	96.2	1105	378×115×455	400×77.5
0.48-90-3	M12	108.3	1243	378×115×455	400×77.5
0.48-100-3	M12	120.3	1382	378×115×455	400×77.5

0.525-60-3	M12	66	693	378×115×330	400×77.5
0.525-70-3	M12	77	808	378×115×330	400×77.5
0.525-80-3	M12	88	924	378×115×455	400×77.5
0.525-90-3	M12	99	1039	378×115×455	400×77.5
0.525-100-3	M12	110	1155	378×115×455	400×77.5

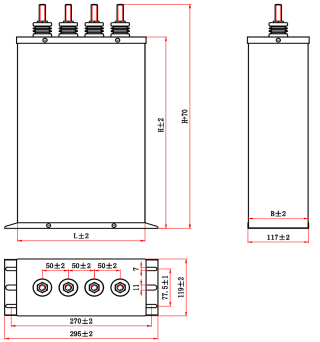

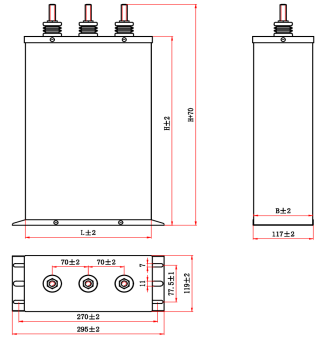

Product models	Terminal selection	Rated Current(A)	Rated Capacity(μF)	L×B×H	Installation dimensions
0.25-10-3YN	M12	13.3	509	245×115×240	270×77.5	Low-Capacity Per-Phase Compensation
0.25-15-3YN	M12	20.0	764	245×115×240	270×77.5	Low-Capacity Per-Phase Compensation
0.25-20-3YN	M12	26.7	1019	245×115×240	270×77.5
0.25-25-3YN	M12	33.3	1273	245×115×330	270×77.5
0.25-30-3YN	M12	40.0	1528	245×115×330	270×77.5
0.25-40-3YN	M12	53.3	2037	245×115×400	270×77.5
0.25-45-3YN	M12	60.0	2292	245×115×400	270×77.5
0.25-50-3YN	M12	66.7	2546	245×115×400	270×77.5

0.28-10-3YN	M12	11.9	406	245×115×240	270×77.5
0.28-15-3YN	M12	17.9	609	245×115×240	270×77.5
0.28-20-3YN	M12	23.8	812	245×115×240	270×77.5
0.28-25-3YN	M12	29.8	1015	245×115×240	270×77.5
0.28-30-3YN	M12	35.7	1218	245×115×330	270×77.5
0.28-40-3YN	M12	47.6	1624	245×115×330	270×77.5
0.28-45-3YN	M12	53.6	1827	245×115×330	270×77.5
0.28-50-3YN	M12	59.5	2030	245×115×400	270×77.5

0.3-10-3YN	M12	11.1	354	245×115×240	270×77.5
0.3-15-3YN	M12	16.7	531	245×115×240	270×77.5
0.3-20-3YN	M12	22.2	707	245×115×240	270×77.5
0.3-25-3YN	M12	27.8	884	245×115×240	270×77.5
0.3-30-3YN	M12	33.3	1061	245×115×240	270×77.5
0.3-40-3YN	M12	44.4	1415	245×115×330	270×77.5
0.3-45-3YN	M12	50.0	1592	245×115×330	270×77.5
0.3-50-3YN	M12	55.6	1768	245×115×400	270×77.5

0.45-20-3	M12	25.7	314	245×115×240	270×77.5
0.45-25-3	M12	32.1	393	245×115×330	270×77.5
0.45-30-3	M12	38.5	472	245×115×330	270×77.5
0.45-35-3	M12	44.9	550	245×115×330	270×77.5
0.45-40-3	M12	51.3	629	245×115×330	270×77.5
0.45-50-3	M12	64.2	786	245×115×400	270×77.5

0.48-20-3	M12	24.1	276	245×115×240	270×77.5
0.48-25-3	M12	30.1	345	245×115×330	270×77.5
0.48-30-3	M12	36.1	414	245×115×330	270×77.5
0.48-35-3	M12	42.1	484	245×115×330	270×77.5
0.48-40-3	M12	48.1	553	245×115×330	270×77.5
0.48-50-3	M12	60.1	691	245×115×400	270×77.5

0.525-20-3	M12	22.0	231	245×115×240	270×77.5
0.525-25-3	M12	27.5	289	245×115×330	270×77.5
0.525-30-3	M12	33.0	346	245×115×330	270×77.5
0.525-35-3	M12	38.5	404	245×115×330	270×77.5
0.525-40-3	M12	44.0	462	245×115×330	270×77.5
0.525-50-3	M12	55.0	577	245×115×400	270×77.5
