Core selling points:
(1) Modular design allows for the free combination and installation of any type of cabinet
(2)Ultra-high compensation rate harmonic performance, comprehensively controlling odd and even harmonics
(3) Imported IGBT and three-level technology, equipped with TI's high-end dual-core industrial control chip
(4) Multiple compensation modes are allocated as needed, and the three-phase unbalance compensation strategy is improved
(5) The equipment and system are well protected, and the humanized interaction experience is excellent
(6) User-friendly HMI, real-time monitoring and display of device operation status
(7) The modular design supports flexible networking and parallel operation of multiple devices
(8) The power grid has a strong power supply capacity and actively monitors resonant points to eliminate resonant risks
Active Power Filter (APF)
Eeample of Model : DZ-APF- 050-400-3L/M
DZ: Enterprise Abbrviation
050: Rated Compensation Current (A)
400: System voltage: 208V/400V/480V/690V
3L: 3L: Three-phase three-wire
4L: Three-phase four-wire

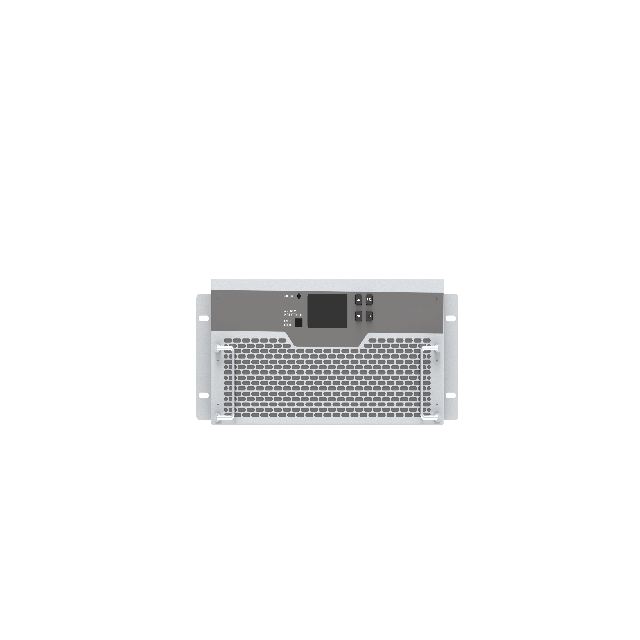

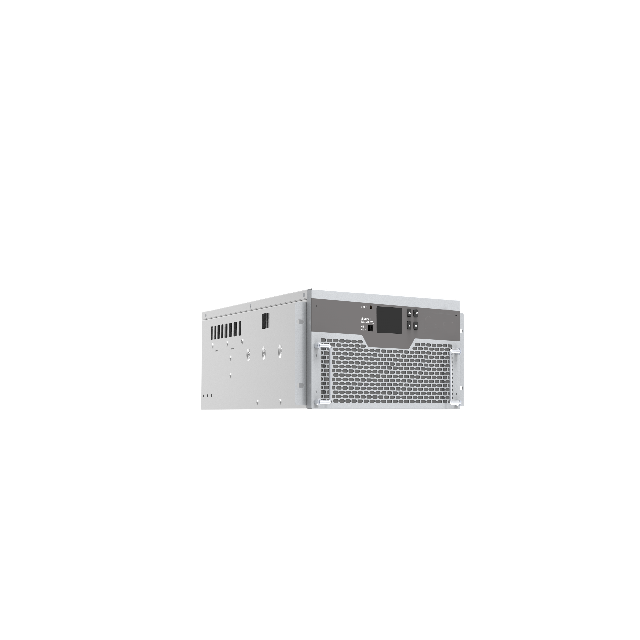

M: M: Rack type

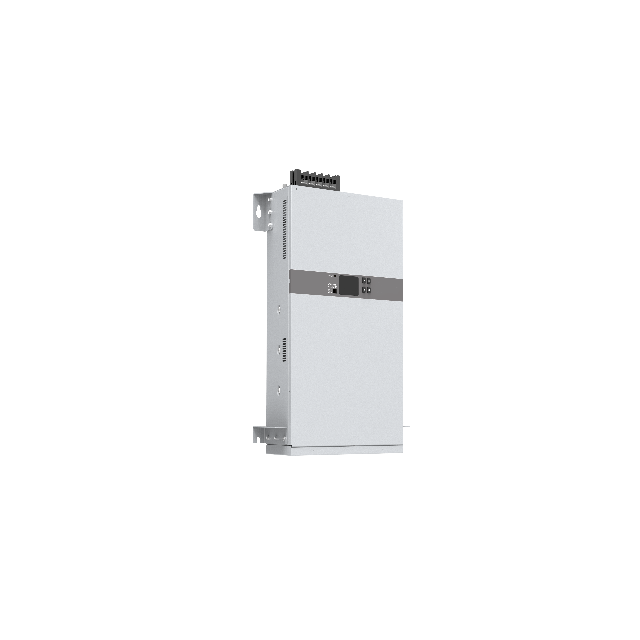

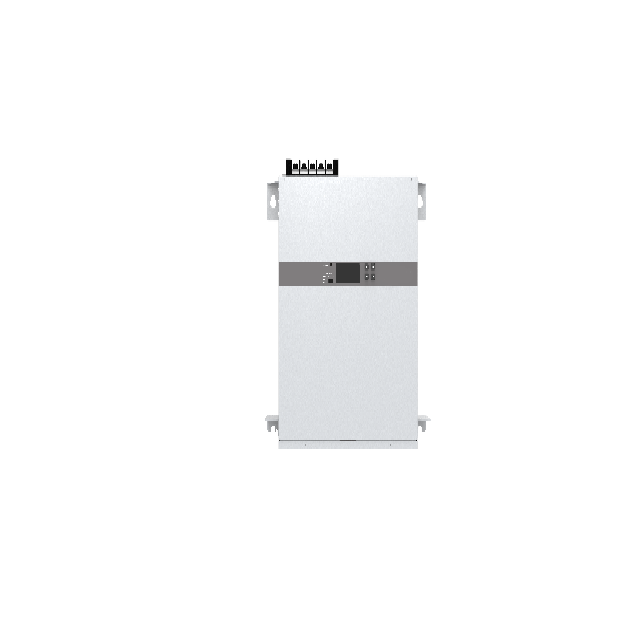

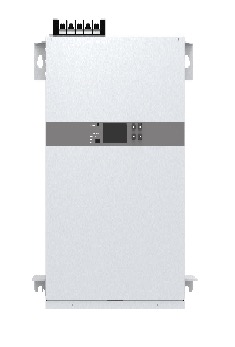

H: Wall-mounted
MP: Plug-in type

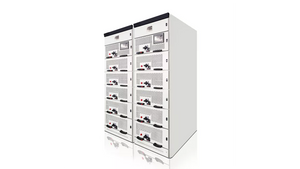

C: Whole cabinet type
