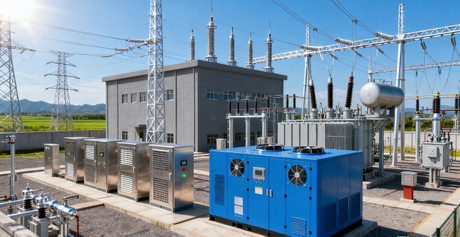

Building The "Digital Anchor" for The Future Grid: How APF And SVG Act As Grid Stabilizers

I. Power Quality Challenges in Data Centers: Reactive Power, Harmonics, Three-Phase Imbalance

Data centers have extremely high requirements for power supply stability. Power quality issues can lead to downtime, data corruption, hardware failures, and increased maintenance costs. According to data from the Uptime Institute, power quality issues account for approximately 33% of all data center outage causes. The main factors currently affecting power quality in data centers include three aspects: reactive power, harmonics, and three-phase imbalance. This article primarily discusses the key role of Active Power Filters (APF) and Static Var Generators (SVG) in power quality management and their future market development.

II. Harmonics: Noise Polluting the Current

Harmonics refer to sinusoidal waves with frequencies that are integer multiples of the fundamental frequency. In data center power distribution networks, due to the operation of numerous non-linear electrical equipment, the voltage and current waveforms are not perfectly sinusoidal but are distorted to varying degrees. Harmonic sources in data center rooms mainly include UPS systems, switching power supplies, HVAC system equipment, lighting, and other non-linear loads. Although the capacity of a single device is small and the harmonic current is insignificant, the cumulative harmonic current and its damage from a large number of devices cannot be ignored.

Harmonics cause the following hazards:

1.Causes equipment overheating:Harmonic currents flowing through transformers and cables cause skin and proximity effects, leading to abnormal heating. For every 10°C increase in transformer temperature rise, its lifespan may be halved.

2.Interferes with precision equipment: Harmonic currents can cause errors or even crashes in monitoring and billing systems within the charging station.

3.Triggers grid resonance: Interaction with capacitive elements in the grid can amplify harmonics, potentially causing catastrophic accidents.

III. Reactive Power: The Busy Idle Runner

Reactive power is necessary for establishing magnetic fields but does no actual work, merely oscillating back and forth between the grid and equipment. Modern data center rooms contain a large number of non-linear loads such as variable frequency drives, UPS systems, switching power supplies, LEDs, and servers, which exhibit capacitive or inductive characteristics and generate reactive power.

Excessively high reactive power means a low power factor, leading to the following hazards:

1. Occupies transformer capacity: If the reactive power component is too high, the actual available active power (kW) of a transformer, for example, a 1000kVA unit, is significantly reduced.

2. Increases line losses:** Line losses are proportional to the square of the current. Reactive current increases the total current, causing energy to be wasted as heat during transmission. Data indicates that additional losses due to reactive power can reach up to 20% of total electricity consumption.

3. Causes voltage fluctuations:** Severe reactive power deficiency can lead to grid voltage drop, affecting charging efficiency and other electrical equipment.

Electricity bills often include a "Power Factor Adjustment Fee" penalizing users with excessively high reactive power. The reward and punishment system stipulated in accordance with the enterprise's power factor requirements: Power Factor<0.9 incurs a penalty; 0.9-0.94 receives progressively reduced electricity bills as the factor increases; 0.95-1.0 receives a fixed reduction. For controllers, the power factor is typically set between 0.95 and 0.96.

Excessively low reactive power can also damage equipment insulation, cause grid voltage rise, and pose resonance risks. Therefore, the most ideal state is when the power factor is close to 1, ensuring highest efficiency, grid stability, and most economical operation.

IV. APF: The Precision "Current Sculptor" Purifying the Power Environment

An APF acts like a keen "doctor,"Real-time detecting harmonic currents in the grid and instantly generating a compensating current equal in magnitude but opposite in direction, accurately neutralizing and canceling them, resulting in a pure sinusoidal output current. This process is controlled by high-speed digital signal processors (DSP) with extremely fast response times, typically within 50 microseconds.

1. High Harmonic Filtering Rate: Achieves over 97% filtering effectiveness for harmonics of the 2nd to 25th order, reducing Total Harmonic Distortion (THDi) from over 30% to below 3%, far exceeding the national standard (GB/T 14549-93) requirements.

2. Ultra-Fast Response Speed: Response time < 100 microseconds, capable of handling rapid load current changes, ideal for scenarios like frequent electric vehicle charging start-stop cycles.

3. Significantly Improves Charging Efficiency: After harmonic treatment, reduced line losses and stabilized voltage ensure the charging process remains optimal, indirectly improving charging speed.

4. Fully Ensures Equipment Reliability: Post-harmonic treatment, can reduce temperature rise in transformers and cables by 5-10°C, significantly extending their service life and reducing failure rates and maintenance costs.

V. SVG: The Intelligent "Power Sponge" Balancing Reactive Power in Real-Time

Traditional compensation devices are like "fixed-size buckets," unable to cope with rapidly changing reactive power demands. The SVG, however, is a "super-intelligent sponge." By monitoring the circuit current and using high-speed power electronic devices (IGBTs), it calculates the required amount of reactive power to inject or absorb in real-time and performs precise compensation. The entire process is fully automated and extremely fast, thereby maintaining reactive power balance in the grid system.

1. Significantly Improves Power Factor, Enabling Reactive Compensation: Allows for seamless continuous compensation from inductive to capacitive, stabilizing the power factor to over 0.99 (ideal value is 1), avoiding penalties from the power utility.

2. Ultra-Fast Response Speed: Response time < 5ms, thousands of times faster than traditional capacitor compensation banks (response in seconds), perfectly keeping up with instantaneous power changes from charging piles.

3. Releases Significant Capacity: For a 1000kVA transformer with a power factor of 0.7, the actual available active power is only 700kW. By using an SVG to increase the power factor to 0.99, it is equivalent to releasing approximately 290kW of capacity, sufficient to install several additional fast-charging piles without requiring capacity expansion, saving huge investment costs.

VI. Powerful Combination: Creating Green, Efficient, and Smart Charging Stations

Taking a charging station as an example, APF and SVG are often integrated together to form a comprehensive power quality management system.

Scenario:A large logistics park charging station equipped with 20 units of 150kW DC charging piles, total design power 3000kW.

Problem: After operation, the transformer was found to be excessively noisy and hot, with a power factor of only 0.72, incurring high monthly power factor adjustment penalties, and unable to run all piles at full power simultaneously.

Post-Governance Effects:

Therefore, the combination of SVG and APF constitutes the core solution for modern comprehensive power quality management. Working synergistically, they address harmonic pollution and reactive power impact caused by non-linear loads like charging stations from the two dimensions of voltage stability and current purity. This combination can transform such loads from being a burden on grid quality into intelligent units supporting stable, efficient, and high-quality grid operation, thereby providing key technical support for the green energy transition and the development of smart grids.

VII. Future Market Space

The number of domestic power quality equipment manufacturers in China is large, forming a landscape of differentiated competition. According to the "China Power Quality Equipment Industry Market Research and '14th Five-Year Plan' Development Trend Report," there are currently over 100 manufacturers in China capable of producing and selling high-voltage SVG, 70-100 manufacturers for low-voltage SVG and APF, over 1000 manufacturers for capacitor compensation devices, and about 20 manufacturers possessing independent R&D capability and able to update and full series of power quality products.

China's power grid has entered the era of flexible power transmission and smart grids, requiring a significant amount of SVG and APF equipment. The global data center power quality market space is projected to be RMB 7.6 billion by 2026. Calculation Assumptions:PUE of 1.3 considered; 2N power supply architecture assumed, with transformer load rate of 50%; Power quality treatment configuration assumed to be 30% of transformer capacity; Global average price of power quality equipment assumed to be RMB 500/kW.

Sources: "Discussion on Power Quality Management in Data Centers" by Qi Dachen et al., "Research on Reactive Power Compensation and Harmonic治理 in Data Center Power Distribution Systems" by Zhang Huiling et al., Minshi Securities Research Institute.
